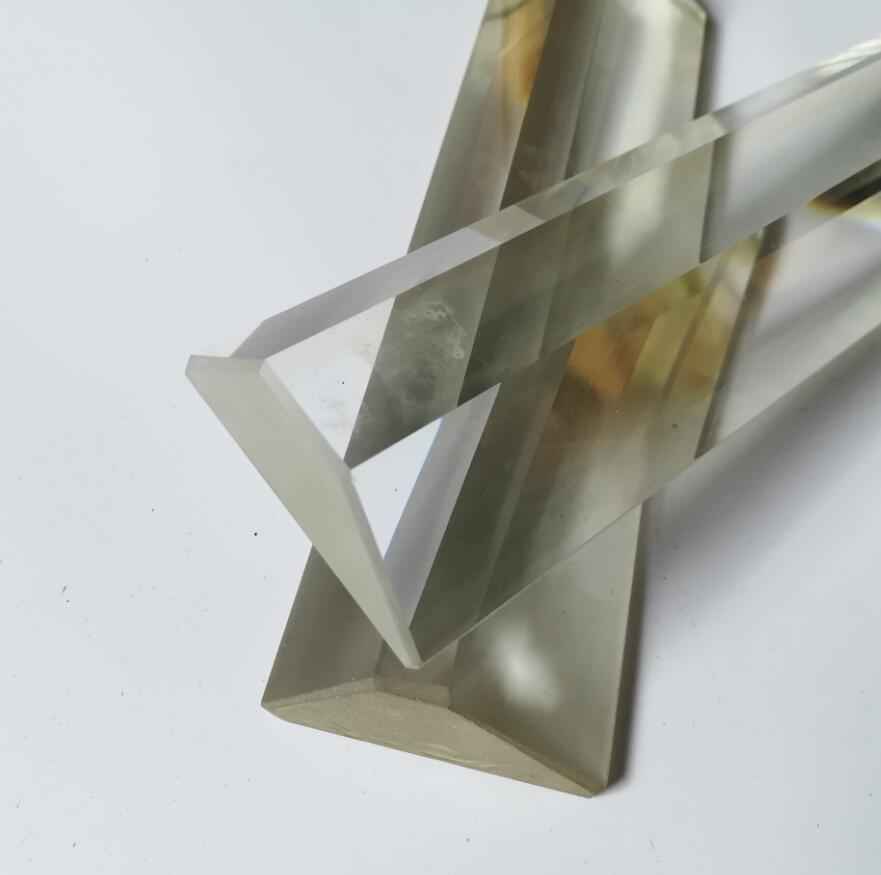

Gauge level glass, also can be called transparent gage glass, transparent level glass and transparent sight glass. The glass is manufactured into the strip shape with flat surface(transparent gauge level glass) or groove surface(reflex gauge level glass) for observing the liquid level of the tank, pressure vessel, boiler, etc.
The tempered borosilicate glass and aluminosilicate glass have lower expansion coefficient and thermal shock performance, these make the glass can be long serve in extreme operational environment such as acids, alkalis, high temperature and high pressure.
Gauge level glass is made with high quality material and it is usually thick in order to resist aggressive environment, such as high temperature, high pressure, acid and alkali. It has clear surface to make sure the high transparency for observing the liquid level more clearly.
Because of the rust resistance feature and high transparency, the transparent gauge glass is widely used in industry, petrol, chemistry, food and medicine.
According to the medium.
Transparent gauge level glass-for no color medium.
Reflex gauge level glass-for colorful medium
Mica component units-for high corrosion resistance medium
Specification
Material A:borosilicate glass(standard)
Material B:aluminosilicate glass(high pressure)
Accessories: graphite gasket, asbestos sealing and mica
Dimensions of Gauge level glass (mm)(transparent gauge level glass, reflex gauge level glass)
Code Length Glass Size Code length Glass Size Code Length Glass Size
|
Code |
Length |
Glass Size |
Code |
length |
Glass Size |
Code |
Length |
Glass Size |
|
A0 |
3-3/4’’ |
95x30x17 |
B0 |
3-3/4’’ |
95X34X7 |
H0 |
|
|
|
A1 |
4-1/2'' |
115x30x17 |
B1 |
4-1/2'' |
115x34x17 |
H1 |
4-1/2'' |
115x34x22 |
|
A2 |
5-1/2'' |
140x30x17 |
B2 |
5-1/2'' |
140x34x17 |
H2 |
5-1/2'' |
140x34x22 |
|
A3 |
6-1/2'' |
165x30x17 |
B3 |
6-1/2'' |
165x34x17 |
H3 |
6-1/2'' |
165x34x22 |
|
A4 |
7-1/2'' |
190x30x17 |
B4 |
7-1/2'' |
190x34x17 |
H4 |
7-1/2'' |
190x34x22 |
|
A5 |
8-5/8'' |
220x30x17 |
B5 |
8-5/8'' |
220x34x17 |
H5 |
8-5/8'' |
220x34x22 |
|
A6 |
9-7/8'' |
250x30x17 |
B6 |
9-7/8'' |
250x34x17 |
H6 |
9-7/8'' |
250x34x22 |
|
A7 |
11'' |
280x30x17 |
B7 |
11'' |
280x34x17 |
H7 |
11'' |
280x34x22 |
|
A8 |
12-5/8'' |
320x30x17 |
B8 |
12-5/8'' |
320x34x17 |
H8 |
12-5/8'' |
320x34x22 |
|
A9 |
13-3/8'' |
340x30x17 |
B9 |
13-3/8'' |
340x34x17 |
H9 |
13-3/8'' |
340x34x22 |
|
A10 |
14-7/12’’ |
370x30x17 |
B10 |
14-7/12’’ |
370x34x17 |
H10 |
14-7/12’’ |
370x34x22 |
|
A11 |
15-3/4’’ |
400x30x17 |
B11 |
15-3/4’’ |
400x34x17 |
H11 |
15-3/4’’ |
400x34x22 |
|
A12 |
16-11/20’’ |
420x30x17 |
B12 |
16-11/20’’ |
420x34x17 |
H12 |
16-11/20’’ |
420x34x22 |
Features and Advantages
High working temperature and pressure
We can recommend suitable material and thickness according to your working environment. Our quartz glass can work under 800 °C temperature.
Acid and alkali resistance
Glass material is stable and the borosilicate and quartz glass can resist most acid and alkali, which expands the life time of transparent gauge glass.
High transmittance
As the glass to observe the liquid level, light transmittance is very important. Glass can meet the requirement.
Friendly to environment
Unlike plastic, glass is friendly to environment both during production and using.
