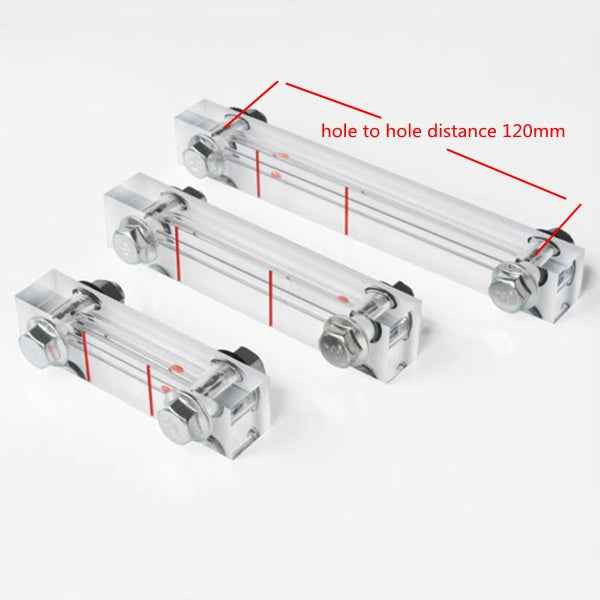

The sight glass is held in place with 2x M10 x 1.5 thread bolts which allow oil to flow through them.(LG160,LG180,LG200 has M10 and M12 thread)
Some sizes include a small plastic float ball to aid in reading the level - see 'oil mark' models below. The ball can be removed prior to installation if not wanted.
Neither contain a thermometer.
Features a Max/Min line.
Comes with bolts and washers.
Will fit many types of machine, particularly anything with an Asian brand or engine.
Center to center distance:
50mm,60mm,65mm,80mm.85mm,90mm,94mm,100mm,110mm,
120mm,130mm,135mm,140mm,150mm,160mm,170mm,180mm,200mm
1. PMMA material, high permeability, long-term use unchanged yellow.
2. Can be connected for a long time in 120 degrees high temperature environment, no deformation, no cracking.
3. The material body has high toughness, pressure resistance and strong impact resistance.
4. Adopt seamless bonding technology, stronger sealing.
Country of Origin: China
Usage/Application: Industrial
Brand: Linker
|
Style |
Body size |
Screw size |
O washer size |
|
LG-50 |
85*22*20 |
M10 |
14*10*2 |
|
LG-60 |
95*22*20 |
M10 |
14*10*2 |
|
LG-65 |
100*22*20 |
M10 |
14*10*2 |
|
LG-80 |
115*22*20 |
M10 |
14*10*2 |
|
LG-85 |
120*22*20 |
M10 |
14*10*2 |
|
LG-90 |
125*22*20 |
M10 |
14*10*2 |
|
LG-94 |
130*22*20 |
M10 |
14*10*2 |
|
LG-100 |
135*22*20 |
M10 |
14*10*2 |
|
LG-110 |
145*22*20 |
M10 |
14*10*2 |
|
LG-120 |
155*22*20 |
M10 |
14*10*2 |
|
LG-130 |
165*22*20 |
M10 |
14*10*2 |
|
LG-135 |
170*22*20 |
M10 |
14*10*2 |
|
LG-140 |
175*22*20 |
M10 |
14*10*2 |
|
LG-150 |
185*22*20 |
M10 |
14*10*2 |
|
LG-160 |
195*22*20 |
M10 |
14*10*2 |
|
LG-160 |
205*22*20 |
M12 |
17*12*2.5 |
|
LG-180 |
215*22*20 |
M10 or M12 |
17*12*2.5 |
|
LG-200 |
325*22*20 |
M10 or M12 |
17*12*2.5 |
