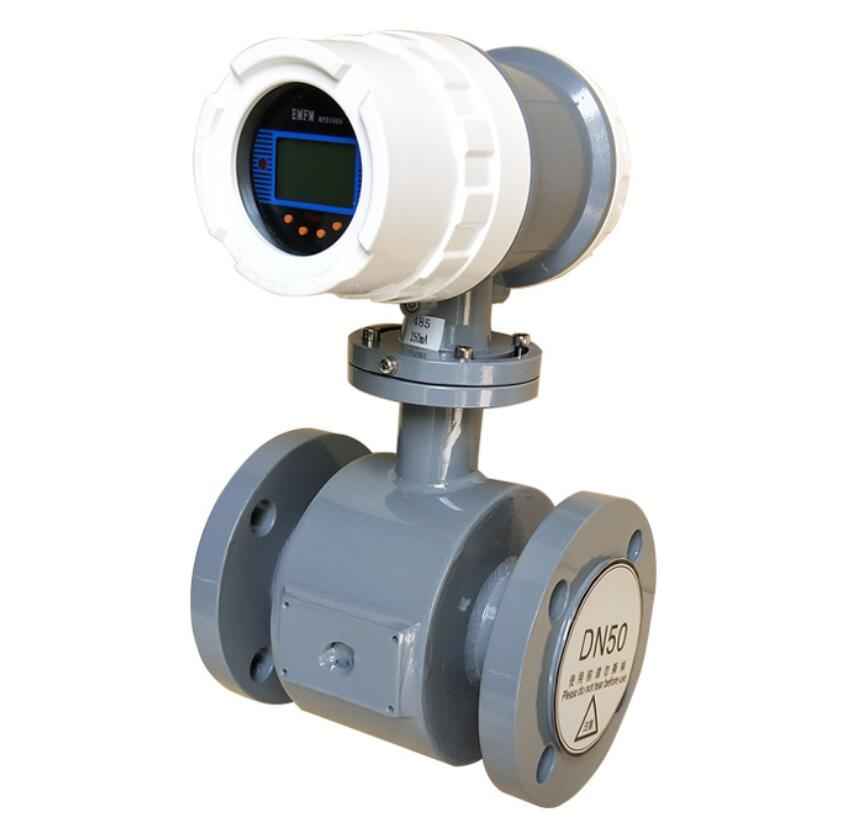

Electromagnetic Flow Meter

The Electromagnetic Flow Meter is an advanced instrument widely used in various industries for measuring the flow of conductive fluids. It operates on the principle of Faraday's law of electromagnetic induction, which states that a voltage is induced when a conductor moves through a magnetic field. This measurement technology is highly efficient, providing accurate flow data suitable for a range of applications, including water treatment, chemical processing, and food and beverage production.

Electromagnetic flow meters consist of a flow tube, which is the sensing component that carries the fluid, and electromagnetic coils that generate a magnetic field. When the conductive fluid flows through the magnetic field, it generates a voltage proportional to the flow rate. This voltage is measured by electrodes positioned on the flow tube, allowing for precise flow measurements to be transmitted to a control system or display.

One of the significant advantages of the Electromagnetic Flow Meter is its ability to measure flow rates without any moving parts, which reduces wear and tear and minimizes maintenance requirements. The lack of moving parts also allows for a stable and reliable measurement even in harsh conditions.

These flow meters are particularly effective for measuring the flow of liquids such as water, acids, and slurries that contain conductive solids. However, it is important to note that Electromagnetic Flow Meters are not suitable for non-conductive fluids, such as oils or gases, since these fluids do not allow for the generation of a measurable voltage.

Due to their design, Electromagnetic Flow Meters can provide a high level of accuracy, typically within ±0.5% of the flow rate, making them a preferred choice in critical applications where precise flow measurement is essential. Additionally, they offer a wide range of flow rate capabilities, from as low as 0.1 m/s to over 10 m/s, accommodating various operational needs.

Installation of electromagnetic flow meters is straightforward, but some considerations must be made regarding pipe diameters and flow profiles. Ideally, there should be straight sections of pipe both upstream and downstream of the meter to ensure the best accuracy and performance. Furthermore, electromagnetic flow meters should be installed in a manner that allows for complete filling of the flow tube for accurate measurements.

Another important factor when choosing an Electromagnetic Flow Meter is the lining materials. The flow tube can be lined with various materials such as PTFE, rubber, or glass. The choice of lining material depends on the type of fluid being measured, the temperature, and the pressure conditions. Proper selection of linings will ensure longevity and reliability of the instrument.

To enhance the performance of electromagnetic flow meters, many modern units come with advanced features such as digital displays, data logging capabilities, and connectivity options for integration into automated systems. This is increasingly essential as industries move towards modernization and data-driven decision-making. The parameters can be easily read and monitored using graphical interfaces that provide insights into the flow characteristics, making them user-friendly.

In terms of calibration, regular calibration of the Electromagnetic Flow Meter is necessary to maintain its accuracy. Manufacturers often recommend calibration at least once a year, but this can vary depending on the application and the environmental conditions. Calibration can simply be achieved by using a primary standard flow measurement device or by utilizing online calibration techniques available in some advanced models.

Overall, the Electromagnetic Flow Meter represents a robust solution in flow measurement technology, offering incredible efficiency and accuracy in measuring the flow of conductive fluids across various industrial sectors. As industries continue to innovate and adopt new technologies, the demand for precise flow measurement devices is likely to increase, positioning the electromagnetic flow meter as a critical tool for ensuring quality control and operational efficiency.

In conclusion, the Electromagnetic Flow Meter is a vital instrument in fluid management and control. By understanding its principles of operation, advantages, installation requirements, and maintenance, industries can benefit significantly from its implementation. This technology not only assures precise measurements but also promotes operational sustainability through its durable and maintenance-free nature. Thus, for any industry dealing with conductive fluids, the electromagnetic flow meter is undoubtedly a worthwhile investment.
